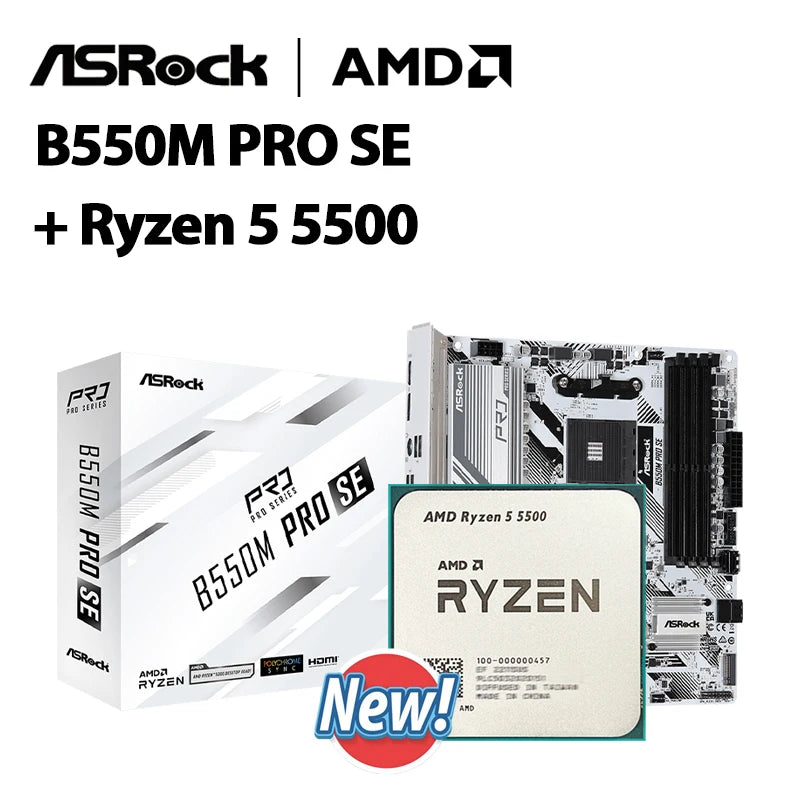

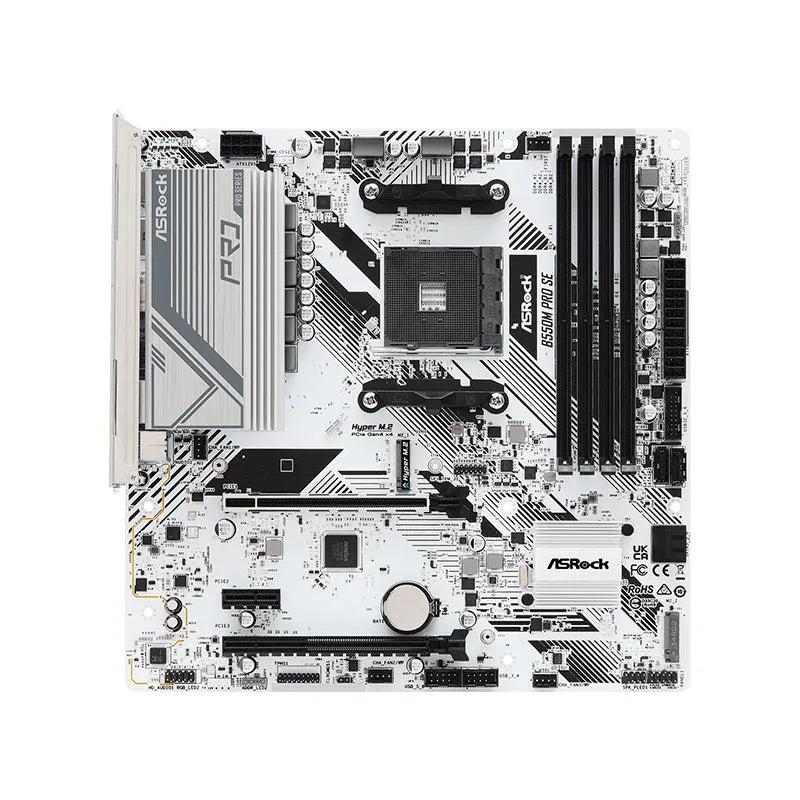

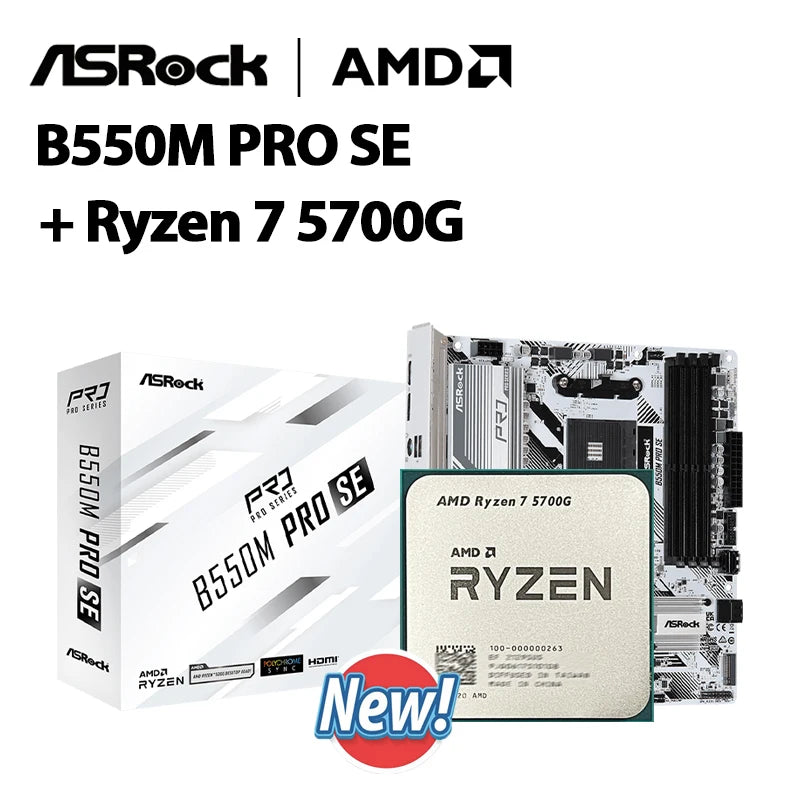

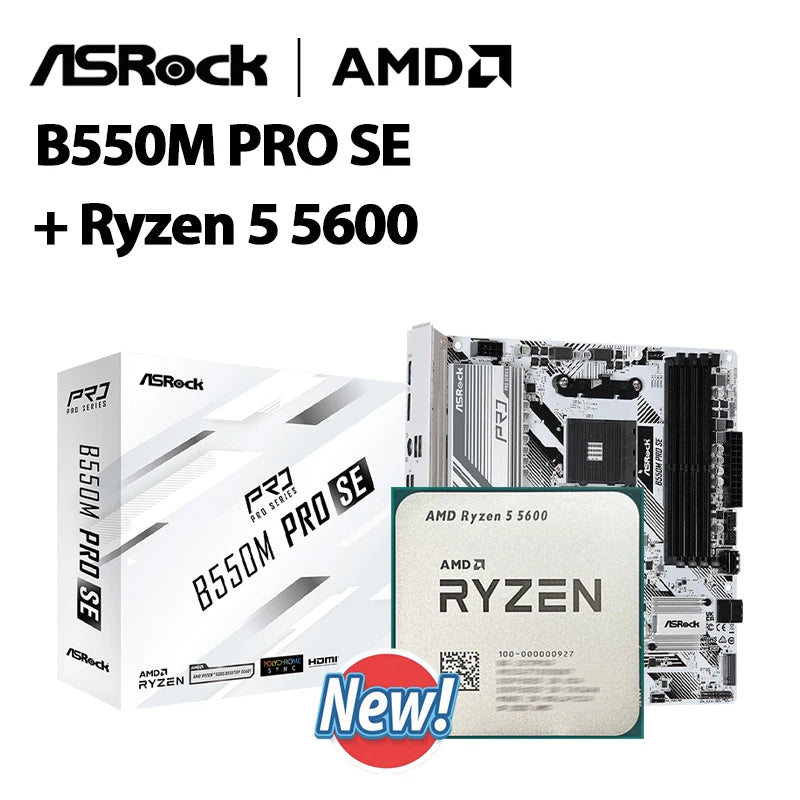

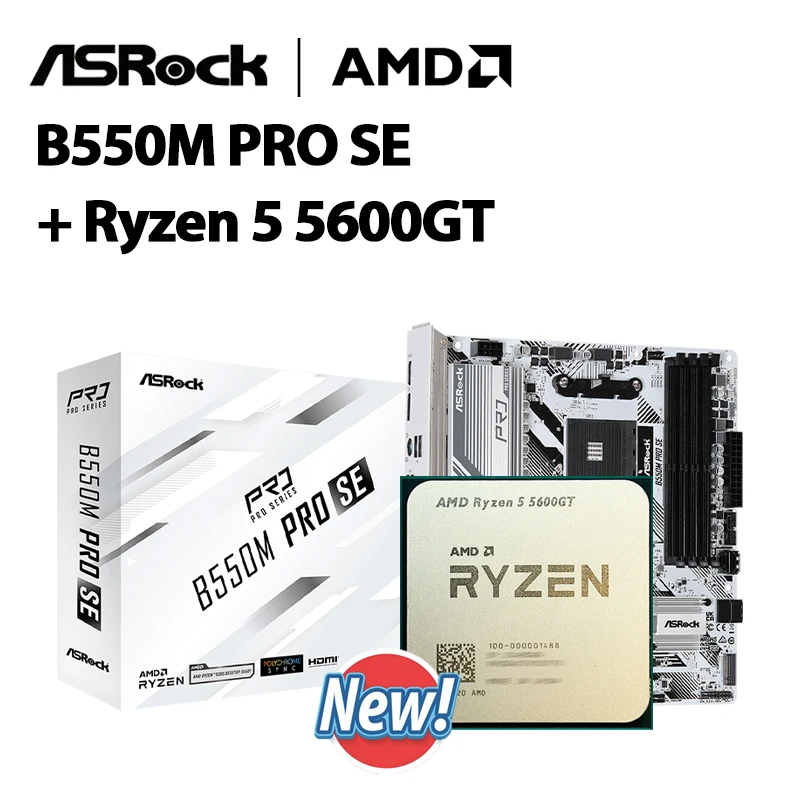

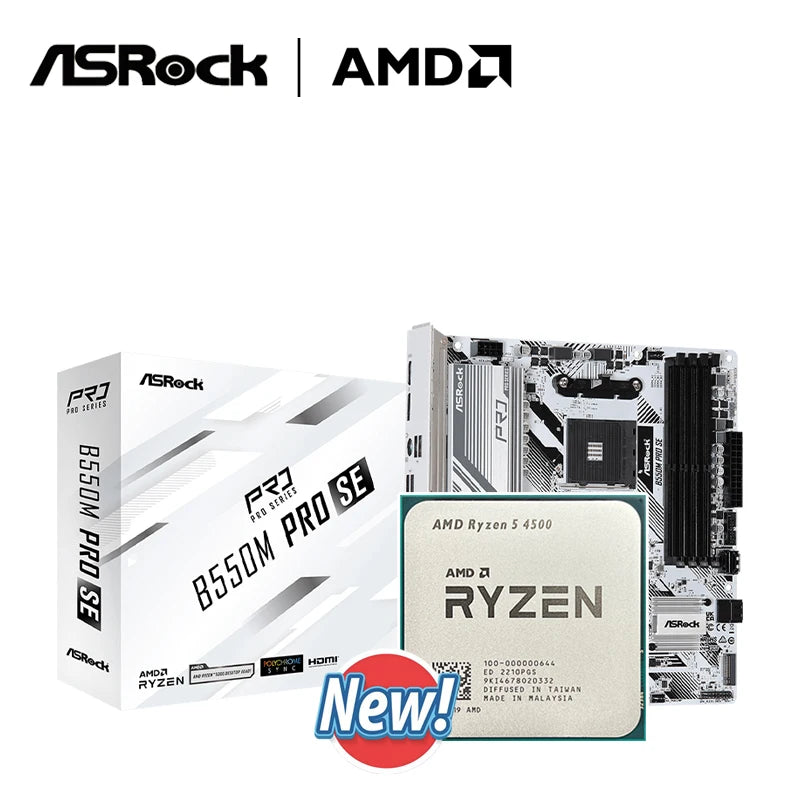

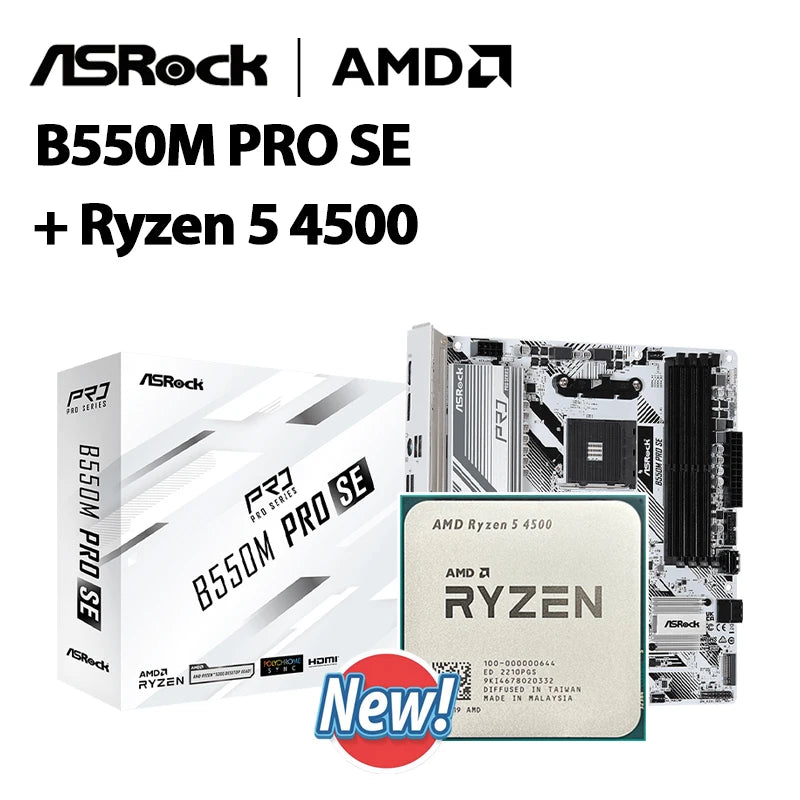

Asrock B550M Pro SE + CPU AMD Ryzen 5 Ryzen 7 chipset AMD PRO565 Motherboard New Suit Socket AM4 All but without cooler

£190.27 GBP

~~£190.27 GBP~~ £190.27 GBP

Sale Sold out

Taxes included.

SPECIFICATIONS

Application: Desktop

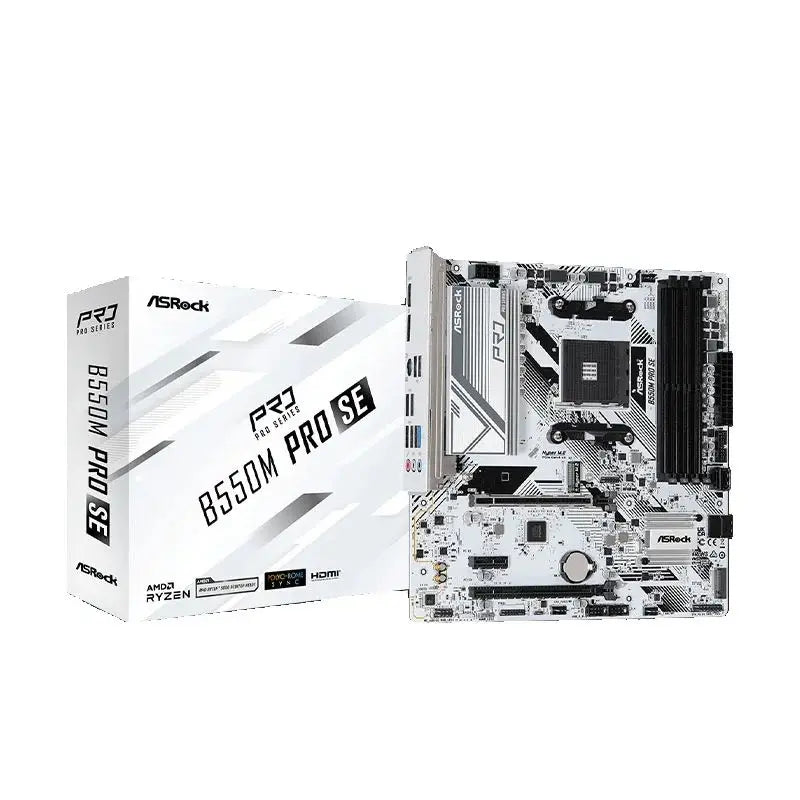

Asrock Model: Asrock B550M Pro SE

Audio Channels: 7.1

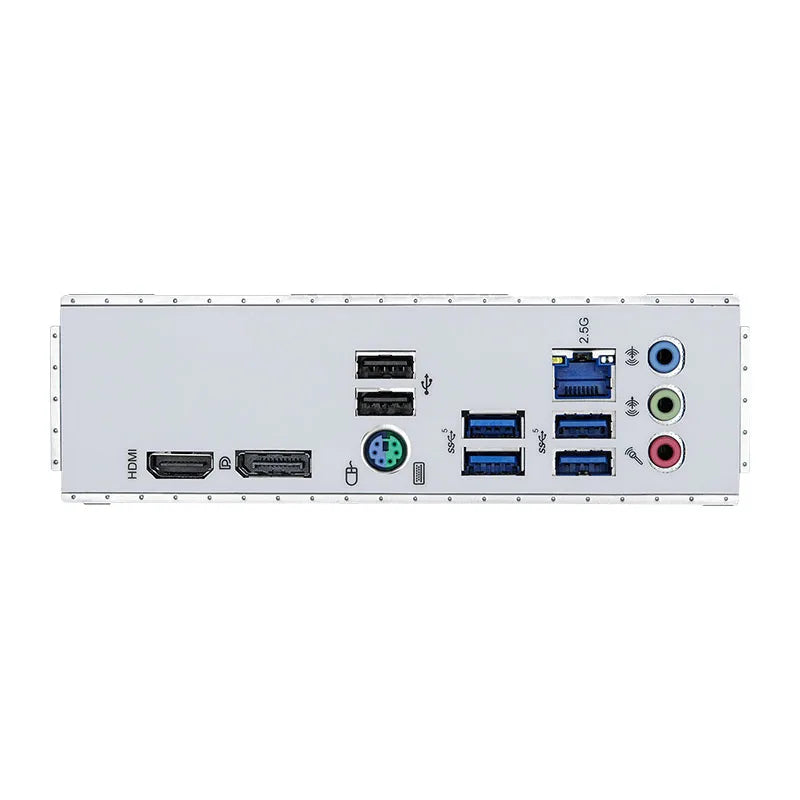

Back I/O Ports: 1x RJ45,2x USB 3.2/3.1 Gen 1,PS/2

Battery Included: Yes

Brand Name: ASROCK

Certification: weee

Chipset: AMD

Chipset Manufacturer: AMD

Choice: yes

Form Factor: CeB,others

Hign-concerned Chemical: None

Maximum Ram Capacity: 128 GB

Memory channel: Double

Number Of Memory Slots: 4

Number of M.2: 2

Number of PCI: 2

Number of PCIe x 1: 1

Number of PCIe x 16: 2

Number of PCIe x 4: 1

Number of SATA Ports: 4

Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),USB 3.1 /3.2 Gen 1 Connector,RGB Header,8-pin +12V Power Connector,OthersConnectors & Header,M.2_FAN Connector

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI - E standards: PCI-E 4.0

Package: Yes

Processor compatibility: AMD Ryzen 4000 Series-R3,AMD Ryzen 5000 Series-R5,AMD Ryzen 3000 Series-R9,AMD Ryzen 5000 Series-R9,AMD Ryzen 4000 Series-R7,AMD Ryzen 3000 Series-R7,AMD Ryzen 5000 Series-R7,AMD Ryzen 3000 Series-R3,AMD Ryzen 4000 Series-R5,AMD Ryzen 3000 Series-R5,AMD Ryzen 5000 Series-R3,AMD Ryzen 4000 Series-R9

Quality Certification: FCC

RAID Supported: No

Socket Type: AM4

Special Features: None

Storage Interface Type: SATA 3,M.2 (NVMe)

Support Memory Type: DDR4

Supports M.2 SSD: 2242,2280,2260,22110

Usage Scenario: others

With CPU: No

Asrock B550M Pro SE + CPU AMD Ryzen 5 Ryzen 7 chipset AMD PRO565 Motherboard New Suit Socket AM4 All but without cooler

Motherboard status: New

CPU status: New

Warranty period: One year warranty

Chip AMD PRO565

-Supports AMD AM4 slot Ryzen ™ 3000, 3000 G-Series, 4000 G-Series, 5000, and 5000 G-Series Desktop Processors*

*Please refer to CPU support list for details

CPU socket :AM4

Memory:

Memory type 4 × DDR4 DIMM

Maximum memory capacity 128GB

Support dual channel

Expansion slot

AMD Ryzen series CPUs (Vermeer and Matisse)

- 2 x PCIe x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode)* AMD Ryzen series APUs (Cezanne and Renoir)

- 2 x PCIe x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode)* AMD Ryzen series APUs (Picasso)

- 2 x PCIe x16 Slots (PCIE1: Gen3x8 mode; PCIE3: Gen3 x4 mode)*

- Supports AMD CrossFire™

- 1 x PCIe 3.0 x1 Slot (PCIE2: x1 mode)

storage

CPU:

- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) mode (with Cezanne, Renoir and Picasso)*

Chipset:

- 1 x M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes*

- 4 x SATA3 6.0 Gb/s Connectors

Connector

- 1 x SPI TPM Header

- 1 x Power LED and Speaker Header

- 2 x RGB LED Headers*

- 2 x Addressable LED Headers**

- 1 x CPU Fan Connector (4-pin)***

- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****

- 1 x 24 pin ATX Power Connector

- 1 x 8 pin 12V Power Connector
