SPECIFICATIONS

Application: Desktop

Audio Channels: 7.1

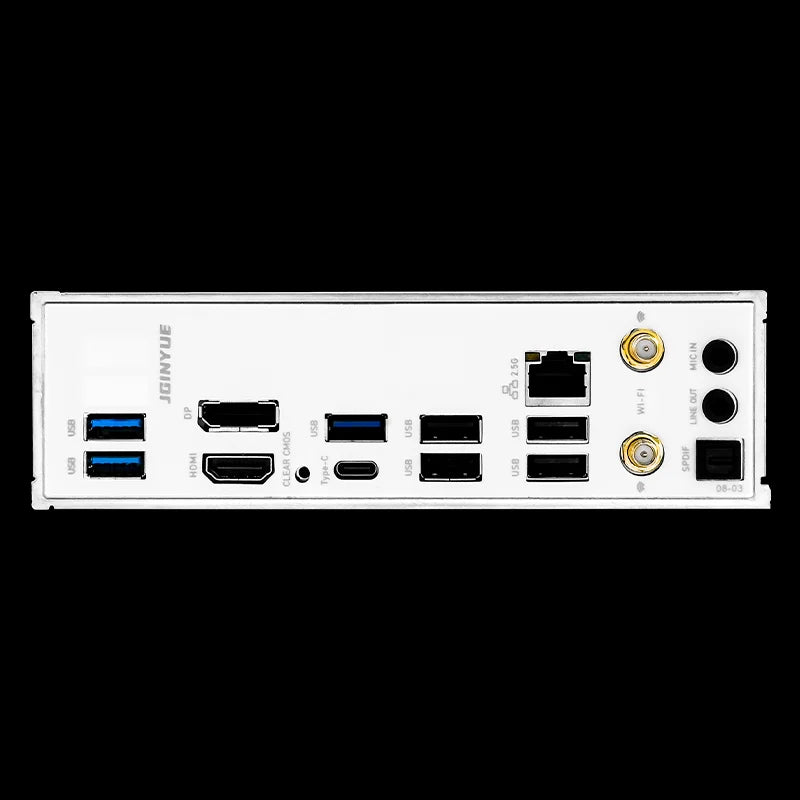

Back I/O Ports: 1x RJ45,WiFi,4x USB 3.2/3.1 Gen 1,USB Type-C,Function Button,Disply Port,4 x USB 2.0,HDMI 2.0

Battery Included: No

Brand Name: JGINYUE

Chipset: AMD B650

Chipset Manufacturer: AMD

Choice: yes

Hign-concerned Chemical: None

Maximum Ram Capacity: 192GB

Memory channel: Double

Number Of Memory Slots: 4

Number of M.2: 3

Number of PCI: 1

Number of PCIe x 16: 1

Number of PCIe x 8: 0

Number of SATA Ports: 2

Onboard LAN: 1x RJ45,WIFI 6 (AX),Bluetooth v5.1

Origin: Mainland China

PCI - E standards: PCI-E 5.0

Package: Yes

Processor compatibility: AMD Ryzen 7000 Series-R5

RAID Supported: Yes

Socket Type: Socket AM5

Special Features: RGB,Cooling Armor,Support for Overclocking

Storage Interface Type: SATA 3,M.2 (NVMe)

Support Memory Type: DDR5

Supports M.2 SSD: 2242,2280,2260

Usage Scenario: Enthusiast & Overclocking,Gaming,Audio & Video,Household,Office,Video Production,Server,3-D Modeling,Video Rendering

With CPU: No

Tips:

1.B850 Snow Dream WiFi Maximum stable output power consumption of 240W, can give full play to

AMD Ryzen 9 9950X3D performance.

Special note: We are not responsible for CPU damage caused by individualusers unlockingthe power wall and testing 280W under extreme stress.

2.This link motherboard onboard MT7902 WiFi card, support WiFi6E BT5.3.

3. Under the premise that the processor and memory wafers are in very goodcondition, the EXPO

can up to 8,000MHz, and it is recommended to pay closeattention to the official website for BlOS updates.

Special note: not compatible with DDR5 Intel-specific/lllegal Adie memory!

4.Recommended use SK Hynix Adie Mdie/Micron/Samsung chip DDR5 RAM.

5.RGB Software : https://jginyue.com./public/upload/JGinYueRGB(beta)1.4.6.exe

6.lf you need CPU fixed frequency-voltage/PBO and EXPO video tutorials, you can ask our customer service,

we will reply within 24 hours!

7.If you have any questions about this product, please feel free to ask!
